LM-EX23 |
|

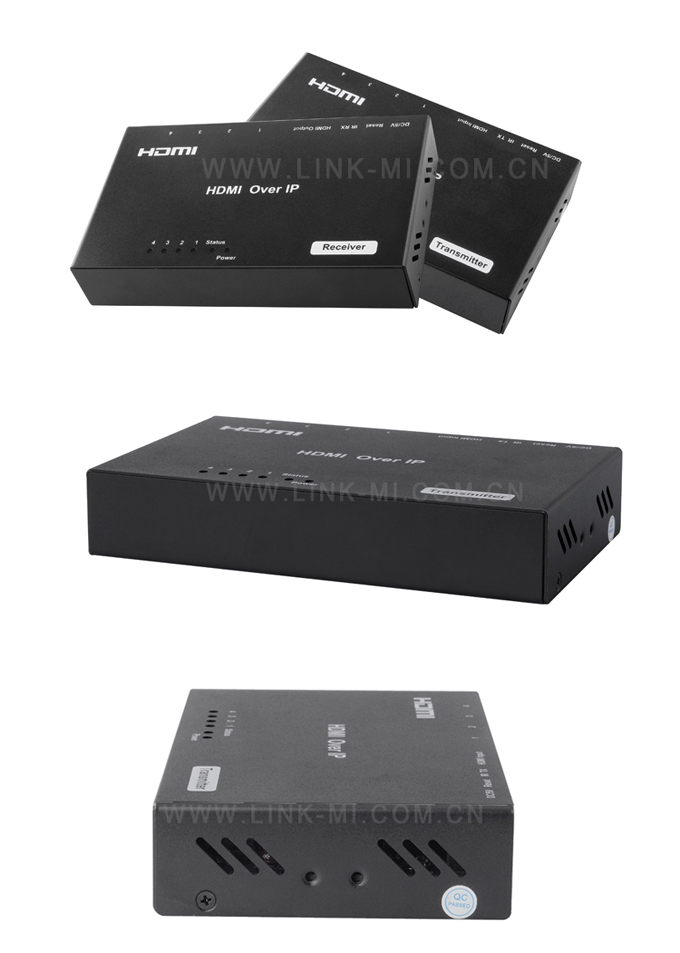

| LINK-MI LM-EX23 HDMI Extender Over IP 120m |
| |
Introduction:
1.Flexible and scalable HDMI 1080p High Quality Video Broadcasting with Gigabit Ethernet LAN.2.Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable. 3.Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading.4.Support Point-to-Point, Point-to-Many network configuration.5.Support unlimited cascading.6.Extend, split, and daisy-chain HDMI, IR using CAT-5e cables7.HDCP compliant |
|
|
| |
|
|
|
Specification
|
Brand |
LINK-MI |
|
Model No. |
LM-EX23 |
|
Material |
Metal |
|
Color |
Black |
|
Interface |
HDMI |
|
Application |
Extend HDMI Signal up to 120m over cat5e/6 cable |
|
Operating Temperature Range |
-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit ) |
|
Operating Humidity Range |
5 to 90%RH ( No Condensation ) |
|
Video Format |
DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p |
|
Video Output |
HDMI+HDCP |
|
Audio Sampling Rate |
32KHz, 44.1KHz and 48KHz |
|
Transmission Distance |
1080p@60Hz 120m ( Maximum ) Over Single Cat5e/6/24AWG/Solid |
|
Power Supply |
DC 5V 2A |
|
Power Consumption |
5 Watts ( Max. ) |
|
Dimension ( L*W*H ) |
145*85*28mm |
|
IR Frequency Range |
38KHz |
|
Net Weight |
TX: 340g; RX: 340g |
|
TX & RX |
Default IP Address: 192.168.168.55;
MAC Address: 00:0b:78:00:60:01
Default IP Address: 192.168.168.56;
MAC Address: 00:0b:78:00:60:02 |
Packing Contents

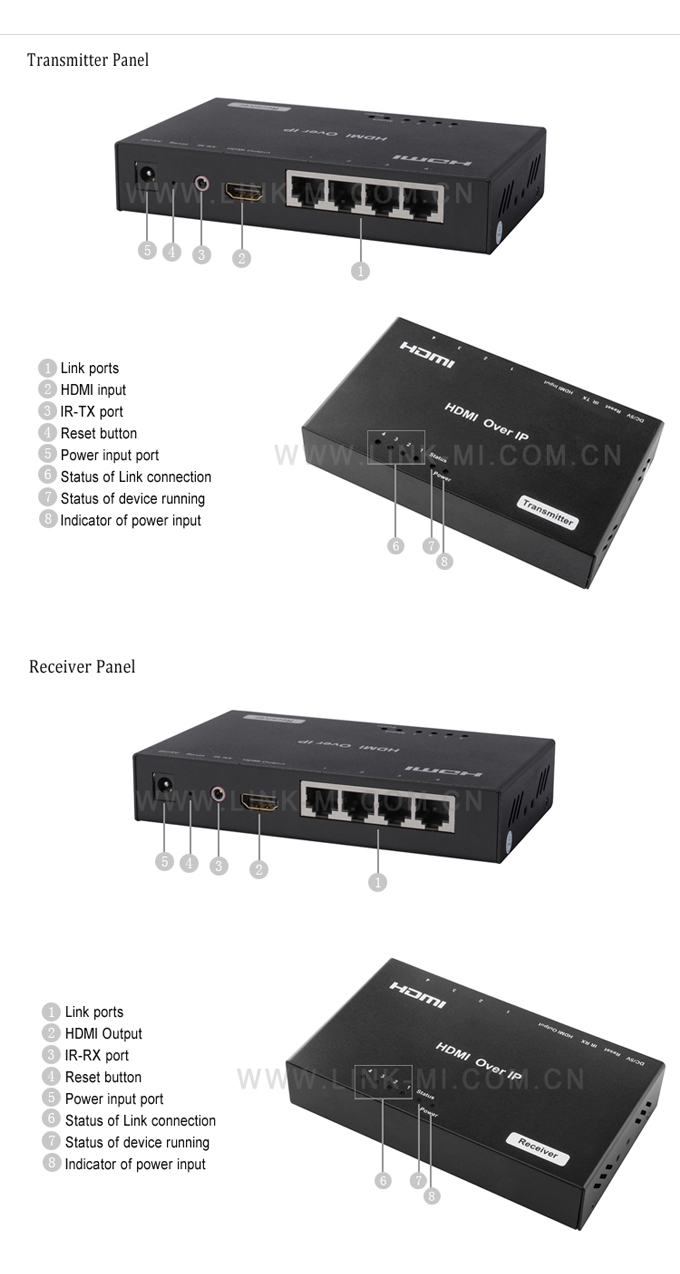

1. Main Unit. HDMI Extender Transmitter & Receiver
2. 2pcs DC 5V 2A Power Adapter
3. IR-TX Cable & IR-RX Cable
4. Operating Instructions |
 |
|
|
|
|
